Typical：AS-301905、AS-3607

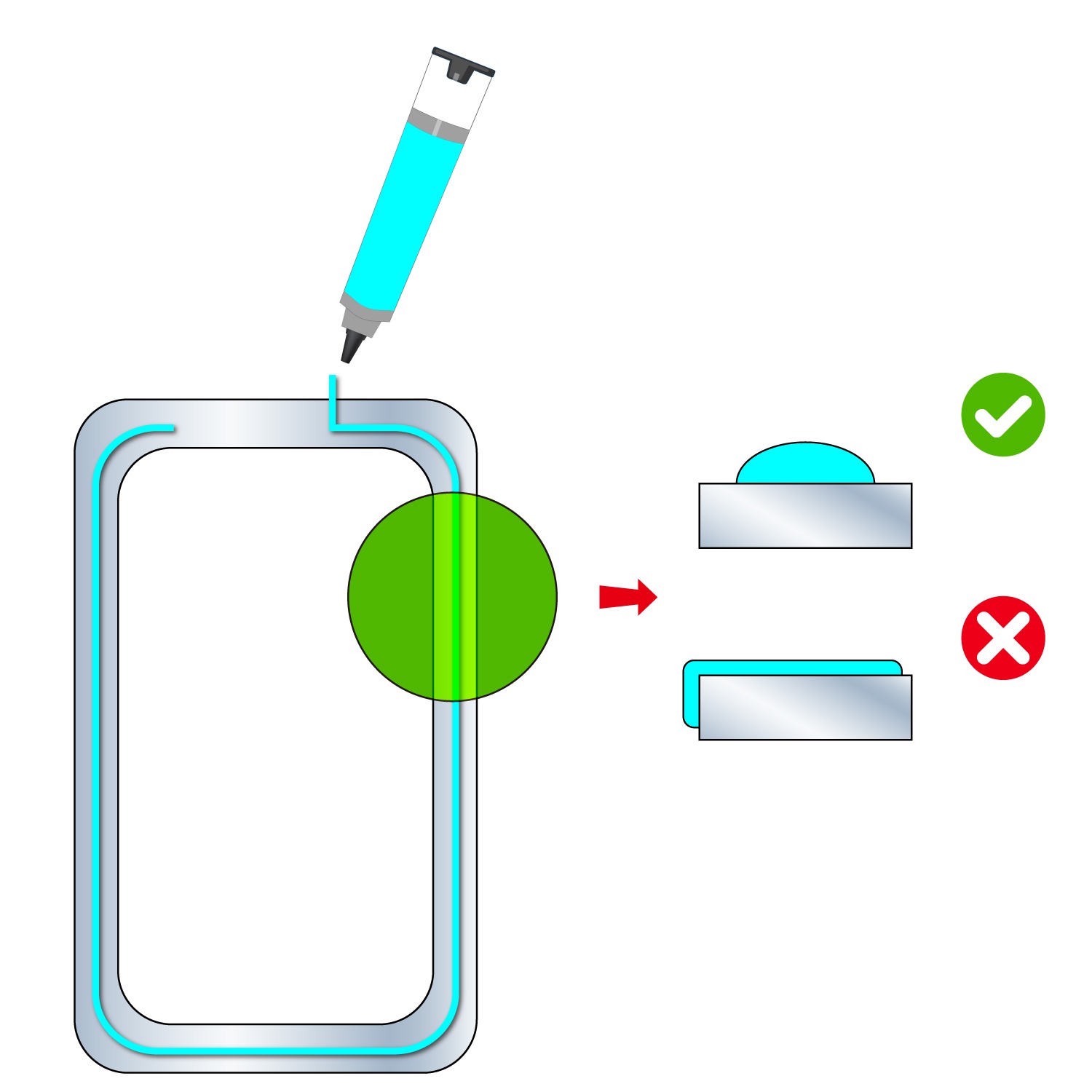

This is a one-component epoxy adhesive which can suppress viscosity reduction when heat applying fine adhesion, it can prevent any overflow (in or out).
AS-301905： Flow control function can be attached to a variety of epoxy products.
AS-3607：Even for some tiny screen printing process, the pre-gel function can be attached to allow better flow control for precise adhesion.
|
Product |
AS-301905 |
AS-3607 |
|---|---|---|
|
Feature |
Impact Resistance |
Pre-Gel Function |
|
Viscosity |
13,000mPa・s |
18,000mPa・s |
|
Pre-gel Condition |
- |
120℃×3min |
|
Curing Condition |
90℃×60min |
120℃×30min |
|
Tg |
95℃ |
75℃ |
|
CTE |
76 / 195 ppm |
75 /200 ppm |
|
Modulus |
2.6 GPa |
2.2 GPa |
|
Tensile Shear Strength |
20 MPa |
21 MPa |
|
Application Example |
Application Example |
Sensor：Board/Cap |
